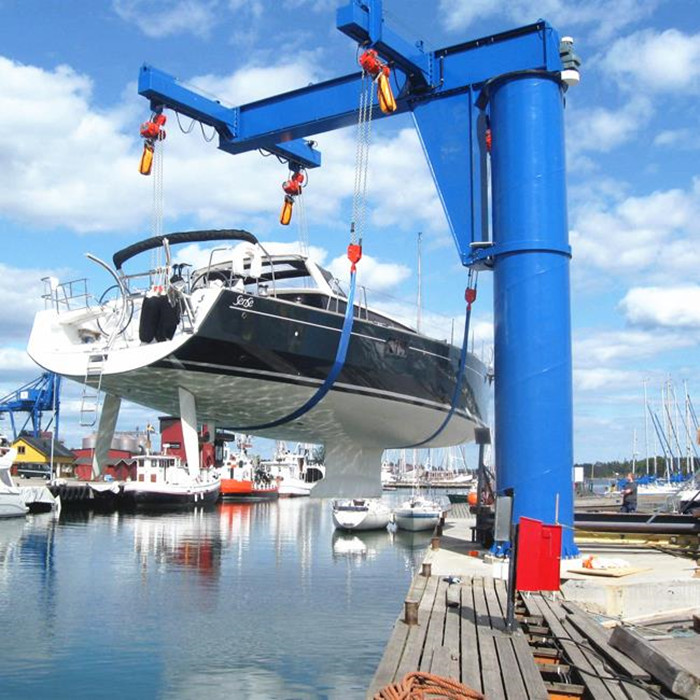

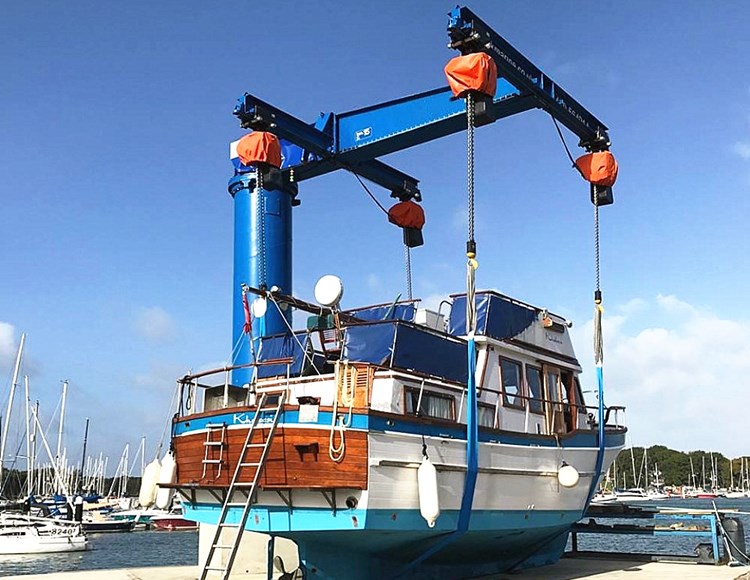

Boat Jib Crane - with 4 Hoists
放大

返回



旋转

Boat Jib Crane - with 4 Hoists

×
×
描述
政策
报价

Main Features

• Lifting Capacity: 1t~12t or more

• Lifting Height: 2~10m, customized

• Outreach: 2.5m~12m, customized

• Class: European design A5/2m, option A3

• Slew degree from 0 to 360°/270°/180°

STONIMAGE Boat Jib crane is composed of column, slewing arm, slewing drive device and electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts. The electric hoist runs in a straight line on the cantilever I-beam and lifts heavy objects. It has the characteristics of light weight, large span, large lifting capacity, economy and durability. It is suitable for short distance, frequent use and intensive lifting operation. It has the characteristics of high efficiency, energy saving, trouble saving, small floor area, easy operation and maintenance.

Boat Jib crane is composed of column, slewing arm, slewing drive device and electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts. The electric hoist runs in a straight line on the cantilever I-beam and lifts heavy objects. It has the characteristics of light weight, large span, large lifting capacity, economy and durability. It is suitable for short distance, frequent use and intensive lifting operation. It has the characteristics of high efficiency, energy saving, trouble saving, small floor area, easy operation and maintenance.





Standard Warranty Policy  - Download



*Valid for all brand new cranes which designed, manufactured and supplied by stonimage.



Project Flowchart-standard
